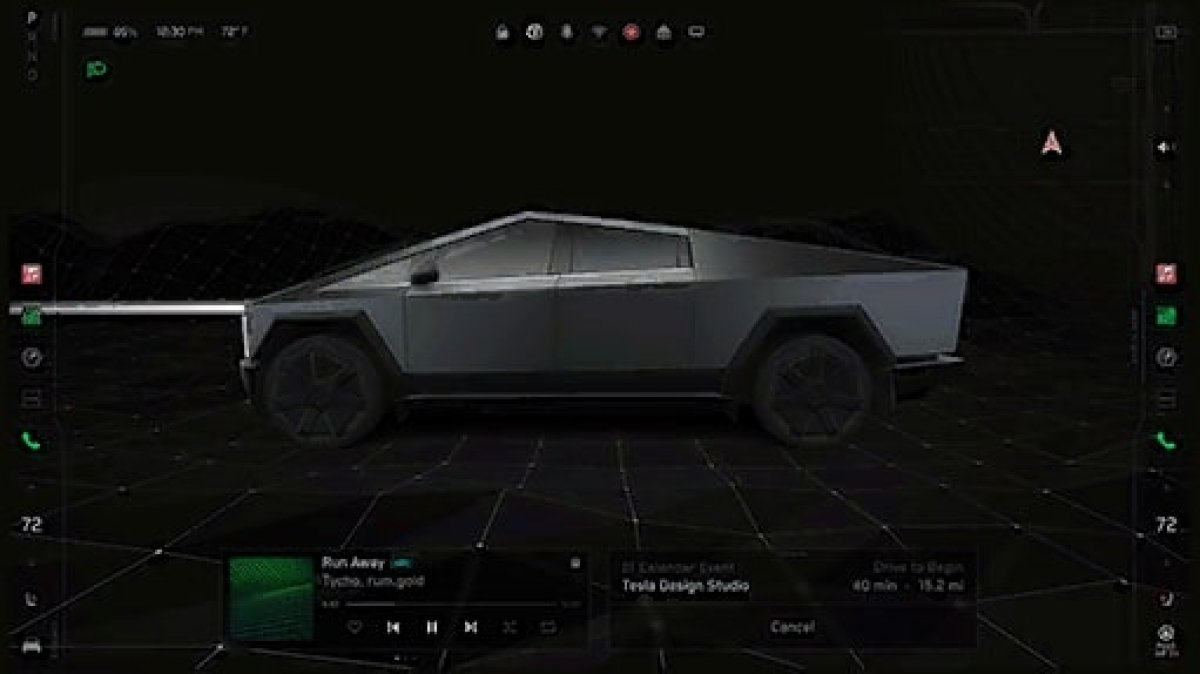

The Cybertruck is not just about power; it's also about a unique user experience. The app update provided a glimpse into the Cybertruck's distinct user interface, showcasing a design divergence from Tesla's other models. This UI image, extracted from the app, shows a fresh approach, keeping in line with the vehicle's futuristic appeal.
Earlier, we discovered the infotainment screen displayed the Cyber Owl while Sentry Mode is activated. Its red eyes glow, offering a unique and cool appearance.
However, with this new image, the Cybertruck UI reveals several things. This UI is radically different from what we see in other 'single-screen' models, like the Model Y.
Visualization & Map
The most obvious change in this 'Parked' screen is that the vehicle is now predominately displayed in the center of the expected 18.5" screen. The navigation map is much smaller, and instead of taking up the right two-thirds of the screen, a portion of it is subtly displayed on the top right corner. However, once the vehicle moves out of park, the map area would likely enlarge to take up the majority of the screen.
App Icons
The familiar app icons along the bottom have been aligned vertically and moved to the left side of the screen. They're also displayed on the right side, for passenger use. In the image we see the same icons displayed on the left and right sides of the screen, but Tesla has talked about passenger preferences in the past, so it wouldn't be unrealistic if Tesla offered a customized version of apps for the passenger.
Looking closer at the app icons, it's not conclusive what they are, but they appear to be the usual suspects, including Apple Music, the Energy app, Camera app, the All Apps icon, which is followed by the most recent app, the phone.
After the apps, there are temperature controls, seat heaters and the familiar Controls or settings icon in the bottom left corner. The seat heater icon is activated on the passenger side, however the Cybertruck is expected to include ventilated seats as well.
On the bottom right corner we have the air bag icon, which indicates whether the passenger airbag is enabled.
The top right corner has the passenger volume control, as well as what looks too be a new icon, possibly to shift or swap the display layout, bringing certain elements closer to the passenger, much like the Model S.
Display Size & Ratio
While its expected that the Cybertruck will include a 18.5" screen, the largest display of any Tesla, not much else is known
With this new image, we can conclude that the display will be 16:9, like the Model Y's. On both the Model S and Model Y, Tesla includes displays with about 150 pixels per inch, so we can expect something similar in the Cybertruck.
If Tesla ends up going with a 18.5" screen at 150 PPI, we may see a display with a resolution of about 2420x1360.
Status Icons
The status icons, such as battery, time and temperature are displayed at the top, aligned toward the driver. While other status icons, such as WiFi are aligned center. In the image we can see the lock icon, what appears to be the driver profile icon, alerts, WiFi, Sentry Mode, but the last two icons are harder to make out, and they could be Cybertruck specific features.
3D Terrain
As we've seen in several other images, the Cybertruck 3D model appears to be displayed in a 3D environment. There have been hints that Tesla is looking to show 3D terrain in the driving visualizations, and this could be our first glimpse at this integration.
V12 Software Update
The Cybertruck is truly a unique vehicle and the UI appears to be just as unique. Tesla has introduced major UI updates in the past, with v11, not to be confused with FSD Beta v11, was introduced last holiday season. It's possible that some of these UI elements will carry over to other vehicles, in particular the status icons, the parked view and more.
