Tesla continues to simplify vehicle manufacturing. In a new patent application published on December 4, 2025, titled “Printed Circuit Glass,” Tesla outlines a method to simplify one of the most tedious parts of vehicle assembly: the wiring harness.
The filing (US 2025/0368012 A1) describes a system in which electrical wires are replaced by conductive traces printed directly on the windshield, turning the glass into a structural circuit board.
How It Works
The core innovation is the change from physical cables to screen-printed wires. This patent describes a process in which a conductive paste, composed of silver, an inorganic ceramic frit, and a liquid medium, is applied to a glass substrate in a specific pattern.
Once applied, the glass and paste are fired at temperatures exceeding 600°C. This extreme heat cures the paste, fusing the silver and ceramic directly into the glass surface. Unlike traditional defroster lines, which are designed to have high resistance to generate heat, these new traces are engineered for extremely low resistance to transmit power and data efficiently without energy loss.
Improved Camera Housing
The primary application for this technology will be to power the increasingly complex sensor suite found at the top of the windshield. The patent explicitly mentions powering the ADAS cameras, rain sensors*, and even heating elements for the wiper’s “parked” position. They can also power the electronchromic rearview mirror.

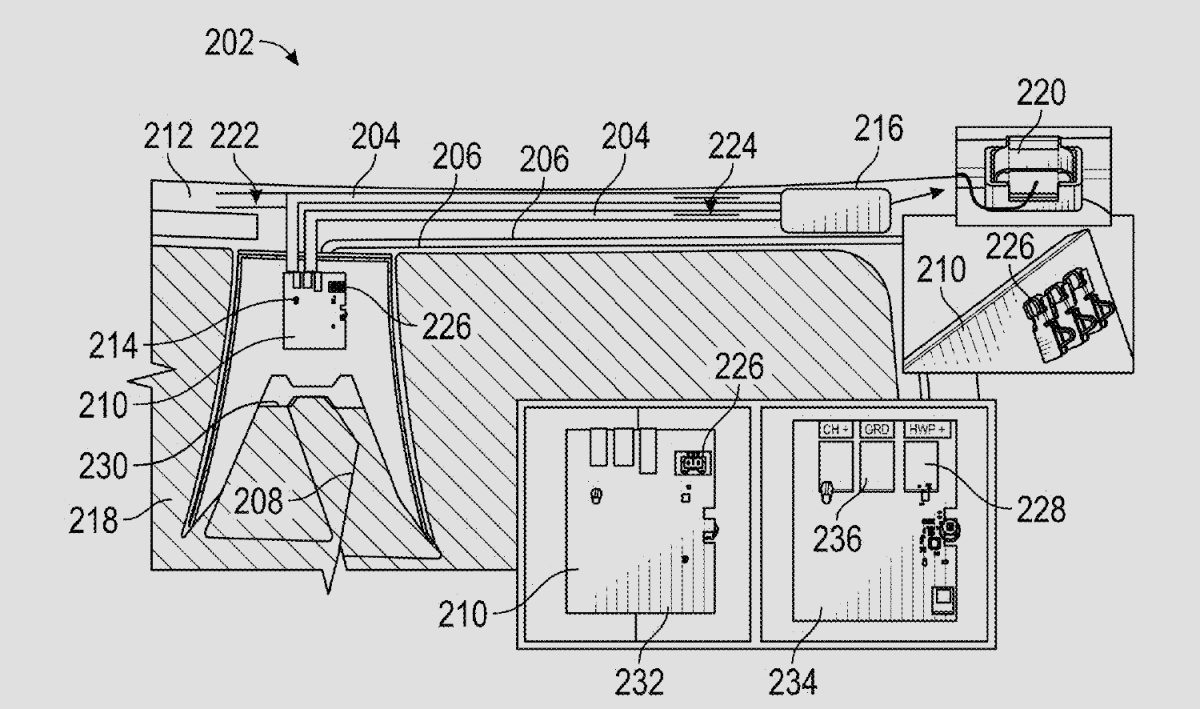

The patent also notes that this method allows for more flexible placement of devices. By printing power traces directly onto the glass, likely hidden behind the black ceramic border, Tesla could potentially place floating sensors in optically optimal positions without needing to route a physical cable to them. This could lead to a significant reduction in the size of the bulky plastic housing currently found behind the rearview mirror.
There simply won’t be a bundle of power and data cables to hide up there - it’ll be nearly invisible across the windshield instead.
While the Model X will soon be discontinued, this patent would have greatly benefited that vehicle, as it would no longer need the wire running down the center of its massive windshield.
*Author’s Note - The patent explicitly mentions rain sensors, even though Tesla has not included them for years. These are likely there as an example, rather than a future use.
Printed Benefits
Beyond aesthetics, the move to solid-state wiring offers significant advantages for reliability. Wiring harnesses in the headliner are a common source of rattles and vibration noise - a problem that is simply impossible with a trace that’s fused to the glass itself.
The patent also highlights the extreme durability of these printed circuits. Tesla’s testing indicates that the silver traces maintain full integrity across a massive temperature span from -40°C all the way up to +108°C (-40°F to 226°F), at any humidity level.
Since the traces are sealed inside the windshield’s laminated glass or printed on the cabin side, they are protected from corrosion and physical damage as well.
Using Glass as a Circuit Board
The most profound impact, however, is on the assembly line. Traditional wiring harnesses are floppy, difficult to route, and notoriously hard for robots to manipulate. They often require manual labor to clip into place and snake through pillars and firewalls. This change could be equivalent to moving from loose wires to circuit boards.
By integrating the electrical path into the rigid glass windshield, Tesla effectively turns it into a plug-and-play structural module. This simplifies the vehicle assembly process and reduces manufacturing complexity. A robot arm can install a windshield with pre-printed circuits in a single motion, connecting it to the vehicle’s main power and data via a simple spring contact or connector pad, eliminating the need for a human to plug in a harness.
While these designs are still only detailed in a patent application, Tesla has already begun testing the durability and usability of this new product. It also aligns with Tesla’s plans for a faster, more automated parallel production line through the Cybercab’s unboxed manufacturing strategy.
By turning a passive component such as the windshield into an active part of the electrical architecture, Tesla reduces parts count, lowers labor, and increases automation potential. However, just like all early patents, it is still a way from the production line.
