The Cybertruck’s angular silhouette relies on a few design elements to maintain that cohesive, stealth-fighter-like design. One of those is the ultra-thin front light slit that sits between the frunk and bumper, where the actual headlights sit, below the front lightbar.
To maintain that design, Tesla had an incredibly narrow space allocated for the headlight assembly, which, unfortunately, is too small to house Tesla’s matrix headlights (how to check if you have them). This physical limitation has meant that Tesla’s stainless steel flagship has lacked the dynamic, glare-free beam shaping found on the rest of Tesla’s modern lineup.
A new patent reveals that Tesla is working to engineer an interesting workaround to bypass this limitation.
The Matrix Space Constraint
Traditional adaptive lighting systems are inherently bulky. A standard LED matrix headlight requires deep physical housings to accommodate the grids of individual diodes, reflectors, and thermal management systems. The design of the Cybertruck’s front fascia leaves virtually zero internal depth above the bumper to package all these components.
Faced with a packaging constraint, Tesla’s engineers had to abandon the plan to include adaptive matrix headlights on the Cybertruck. If they needed to dynamically shutter light, they would need an alternative solution.
Engineering a Chemical Shutter

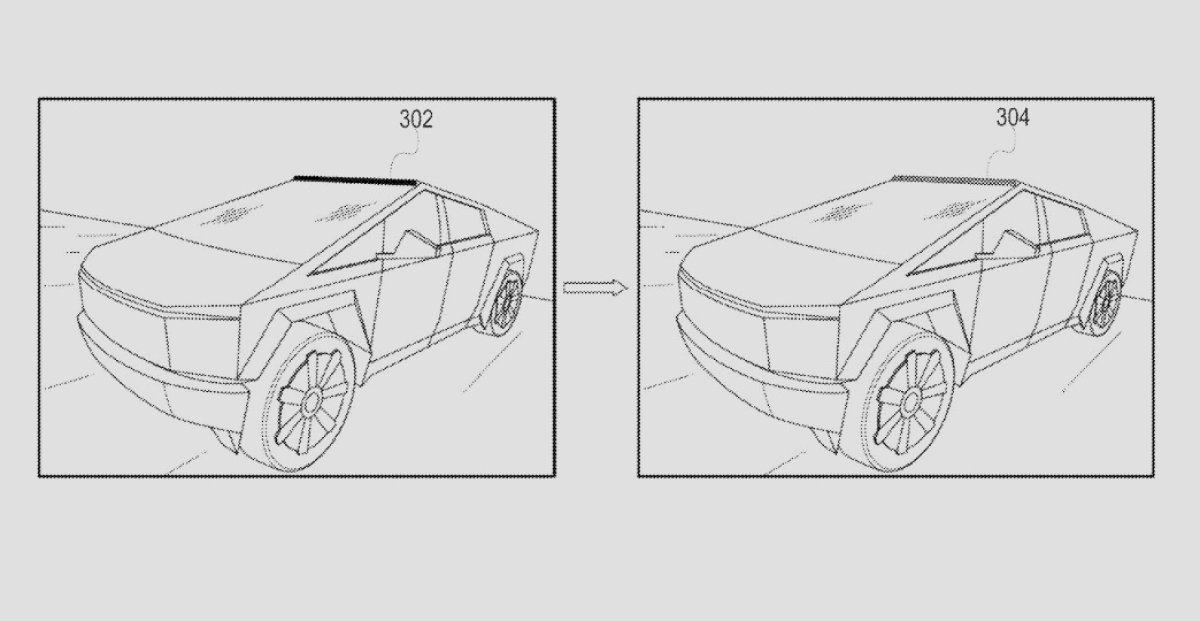

According to the new patent application (US 2026/0104150), Tesla is developing an adaptive lighting system that uses ultra-thin chromic paneling. This is a specialized photochromic or Suspended Particle Device (SPD) film applied directly to the surface of the headlights, which can act as a dynamic shutter.
The true ingenuity of this patent is how it actually works. Rather than relying on a network of ambient light sensors and electronic control units to adjust the glass's opacity, Tesla engineered a film that reacts to the vehicle's own LEDs.

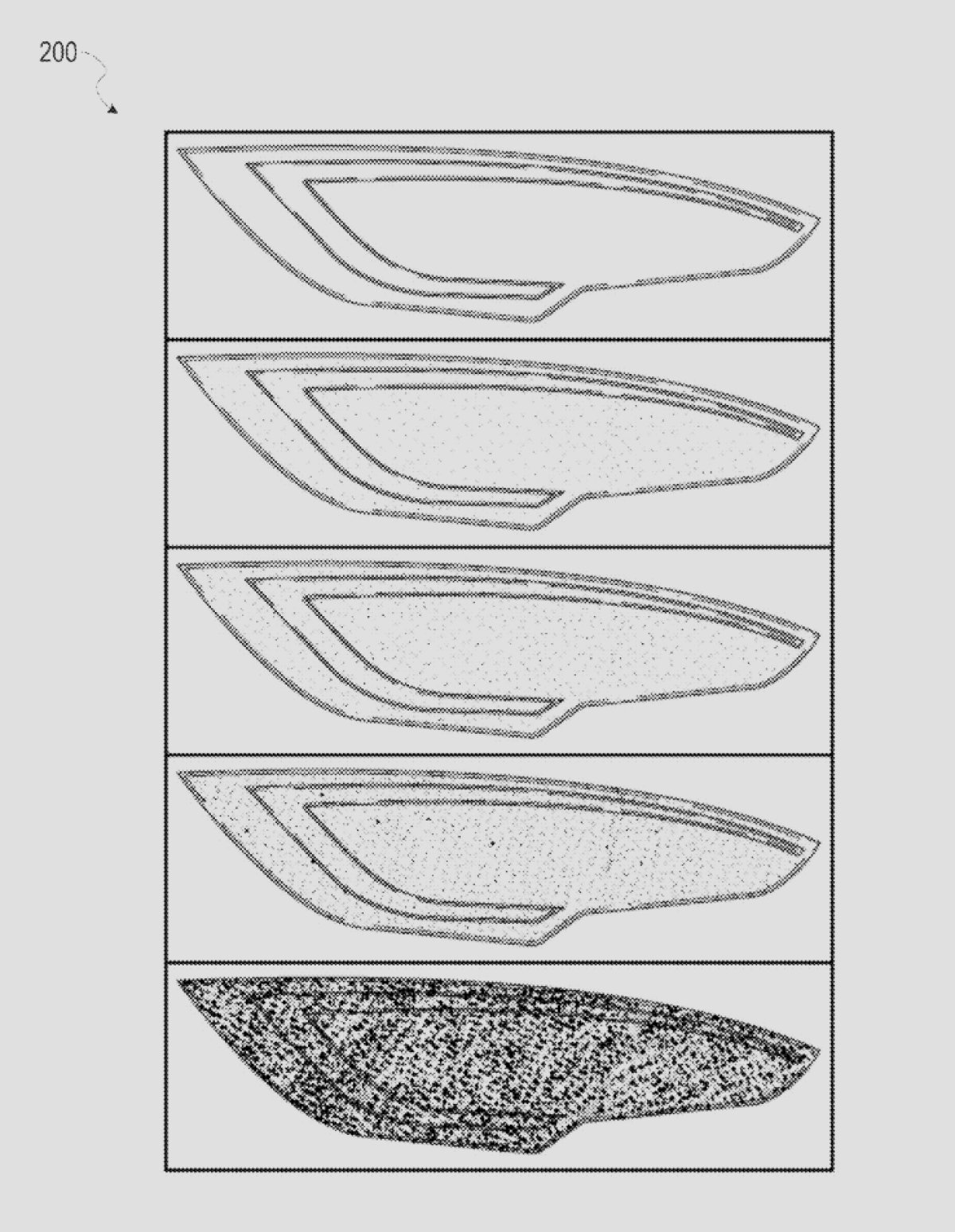

The photochromic dye contains sensitizers that are matched to the LED’s light spectrum. When the internal LEDs emit at a specific wavelength, they activate the dye, transitioning the lens from a high-opacity dark state to a transparent state, similar to how transition lenses on glasses would work if they activated instantly.
In short, this would allow an active matrix of these film segments to selectively block light aimed at oncoming traffic, essentially replicating the physical matrix assembly at a microscopic level.
How it Works
In short, this allows Tesla to divide each of the 7 LEDs in each headlight into 4 or more pixels per LED. Tesla normally uses matrix arrays with a resolution of 100 pixels to meet NHTSA and Transport Canada requirements for Adaptive Matrix Highbeams.
By using 8 film squares per LED, Tesla would achieve 112 pixels (7 LEDs x 8 sub-pixels x 2 headlights), meeting the requirements and standards of the rest of the fleet.

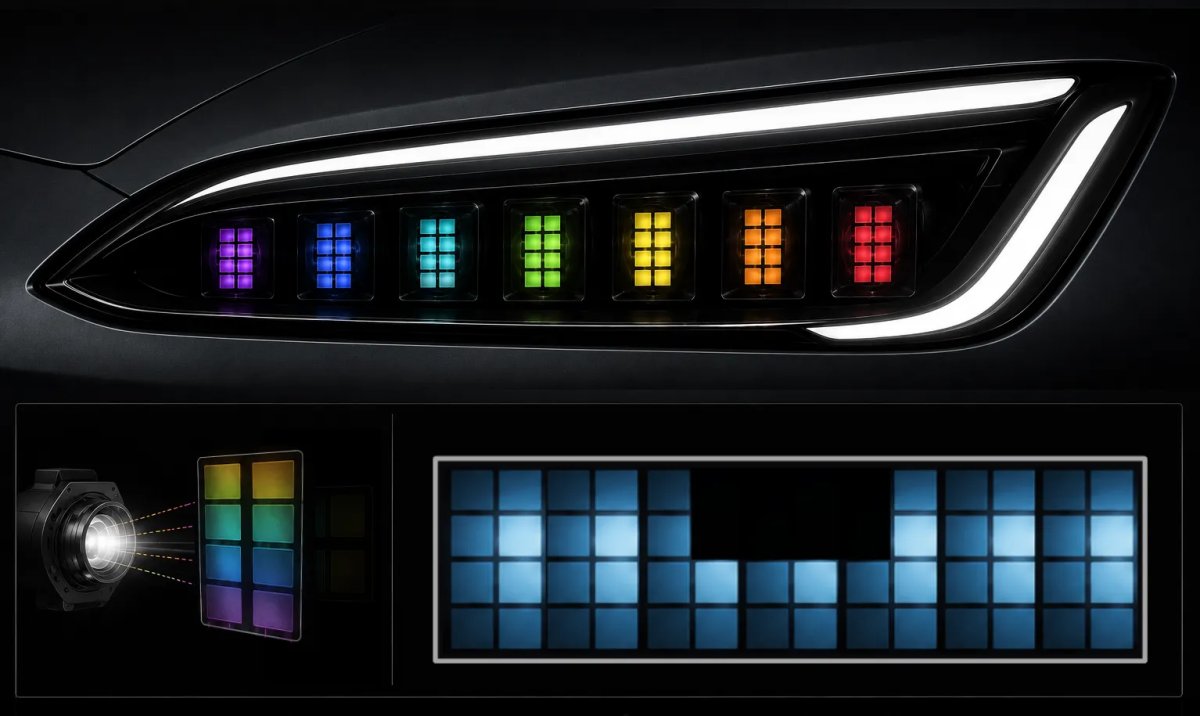

By placing 8 film squares in front of each LED and having each square respond to a different light frequency, Tesla could achieve much higher resolution.
Tesla would dynamically adjust the LED frequency multiple times, letting it correctly dim each required film square. For example, if Tesla wanted to dim the top two middle-most “pixels,” it could use the frequencies of the other squares to keep them clear and let light through, while avoiding the frequencies of the two squares where light should be blocked.
Passive Matrix Headlights
By engineering a passive chemical reaction, Tesla eliminates the need for bulky processing modules and external sensor wiring. The light turns on, the specific wavelength hits the glass, and the surface clears.
This patent could also drastically simplify the part cost of adaptive matrix headlights. Newer headlight units are single units that often cost over $3,000 per module, meaning that damage requires full replacement of the module. By moving the sub-pixels to a chemical film that could easily be replaced, Tesla could drastically cut manufacturing costs and increase the availability of an important safety feature.
One of Tesla’s key tenets is to remove unnecessary sensors and replace them with simplified variants and software. In this case, deleting the physical feature and replacing it with a chemical film is a fine example of Tesla’s first principles methodology at work.
